Things you didn't know you need to know about WordPress and databases

crash course into database architecture

slides: wcbtn.j7y.co/

Gabor Javorszky

  • freelancer, work with clients on WooCommerce / Subscriptions / performance problems
  • blog on javorszky.co.uk
  • twitter in bottom left corner

Assumptions

  1. Site is large with lots of data
  2. with WooCommerce
  3. You are a developer / have seen the WP database before

common (slow) queries

get me all the orders for user 4
get me all subscriptions where the next payment date is between X and Y
get me all orders where the total is $19.92
get me the sum of all order totals where the order date is in May and order by order total. or date
basically doing anything on the admin area

All of those are going to be

...really...

...slow.

The Talk

  • Part I: indexes and how to use them (SELECT / ORDER BY / GROUP BY index usage)
  • Part II: storing data in multiple tables vs one table - foreign keys and why they're awesome
  • Part III: tools to measure stuff

Part I: Indexes

What are they?

Why are they important?

How do they work? 🌈🌈

What are indexes

library j zamora
library index Sanwal Deen
By author By book By author-book
George Orwell - pos 832:021 George Orwell: Animal Farm - pos 832:021 Animal Farm - pos 832:021
Isaac Asimov - pos 432:333 Isaac Asimov: Foundation - pos 531:214 Foundation - pos 432:333
Isaac Asimov - pos 531:214 Isaac Asimov: The Naked Sun - pos 432:333 The Handmaid's Tale - pos 111:209
Margaret Atwood - pos 111:209 Margaret Atwood: The Handmaid's Tale - pos 111:209 The Naked Sun - pos 531:214

Why are they important?

👌 designed indexes ➡
fast, efficient data access ➡
💯 site ➡
😍 customers ➡
💰💵

Unique / multi index

UNIQUE: one value can only appear once in a column. Super fast
Example: post IDs

MULTI: same value can repeat. Still fast, though additional filtering required.
Example: postmeta_key

NULL values in indexes

tldr; if data in column shouldn't ever be NULL, declare it so. Data lookup will be faster.


						CREATE TABLE `wp_posts` (
							`ID` bigint(20) unsigned NOT NULL AUTO_INCREMENT,
							...
						)


protip: primary keys will always be NOT NULL!

protip2: unique keys permit multiple NULL values!

See optimizing InnoDB queries

Compound indexes


						-- given these columns
						-- ID, post_name, post_date

						CREATE INDEX (`ID`, `post_name`, `post_date`)
						-- will result in a compound index across ID, post_name, post_date, in that order


“If the table has a multiple-column index, any leftmost prefix of the index can be used by the optimizer to look up rows.”


						SELECT * FROM table WHERE `ID` = x, `post_name` = y        -- uses index (1,2)
						SELECT * FROM table WHERE `ID` = x                         -- uses index (1)
						SELECT * FROM table WHERE `ID` = x, `post_date` = z        -- NOT using index (1,3)
						SELECT * FROM table WHERE `post_name` = y, `post_date` = z -- NOT using index (2,3)
						SELECT * FROM table WHERE `post_name` = y                  -- NOT using index (2)


Columns, data types

  • numeric: INTEGER, BIGINT, SIGNED / UNSIGNED
  • string: TEXT, VARCHAR, LONGTEXT
  • date type: DATE, TIMESTAMP, DATETIME
  • specifying character lengths: VARCHAR(191), BIGINT(20)

Examples of signed / unsigned. "Can it have a negative sign?". Highest binary place is the sign


							// signed -127 – +127
							011111111 = +127
							111111111 = -128

							// unsigned 0 – 255
							011111111 = 127
							111111111 = 255

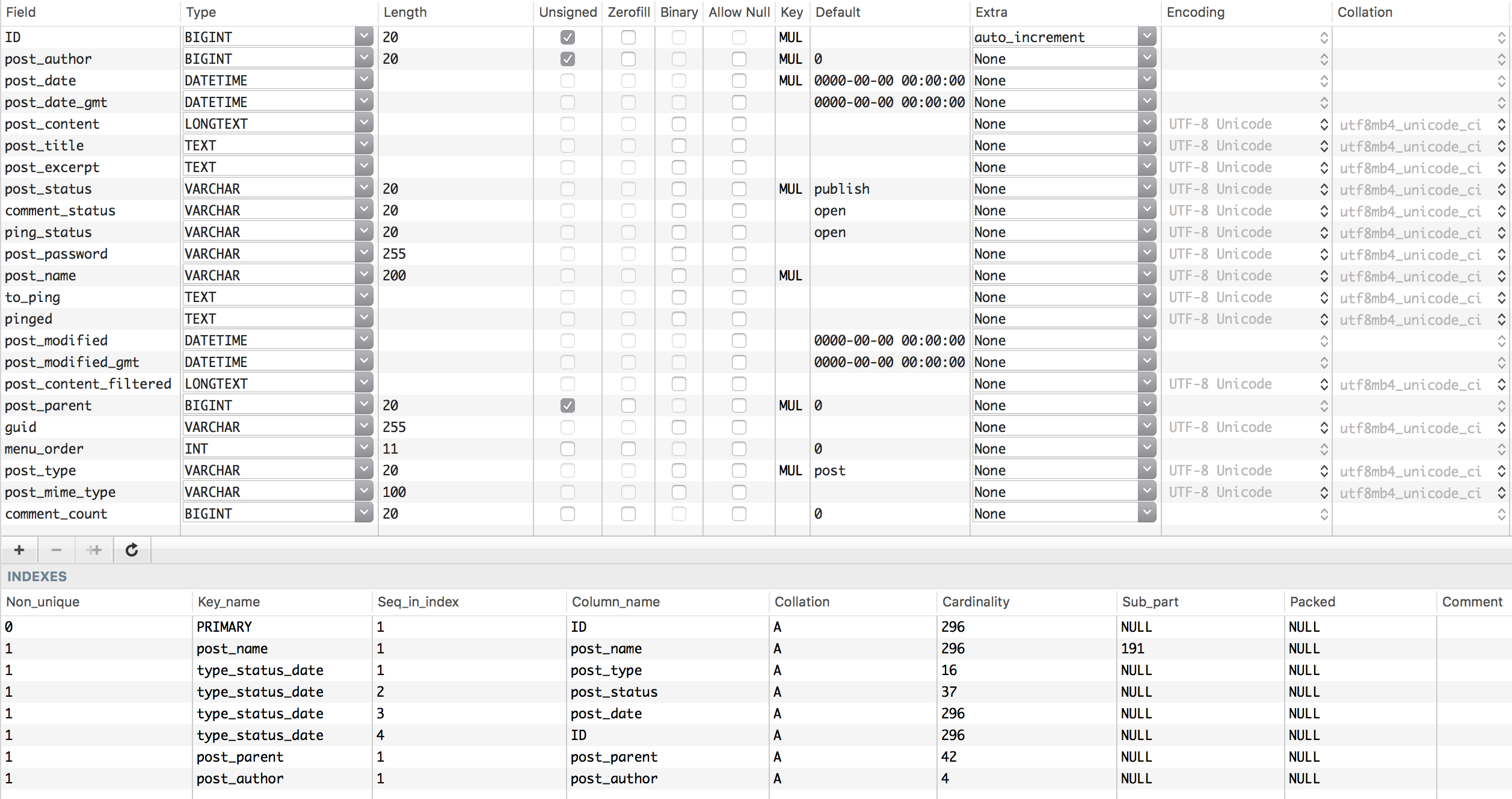

raw posts table structure in sequel pro

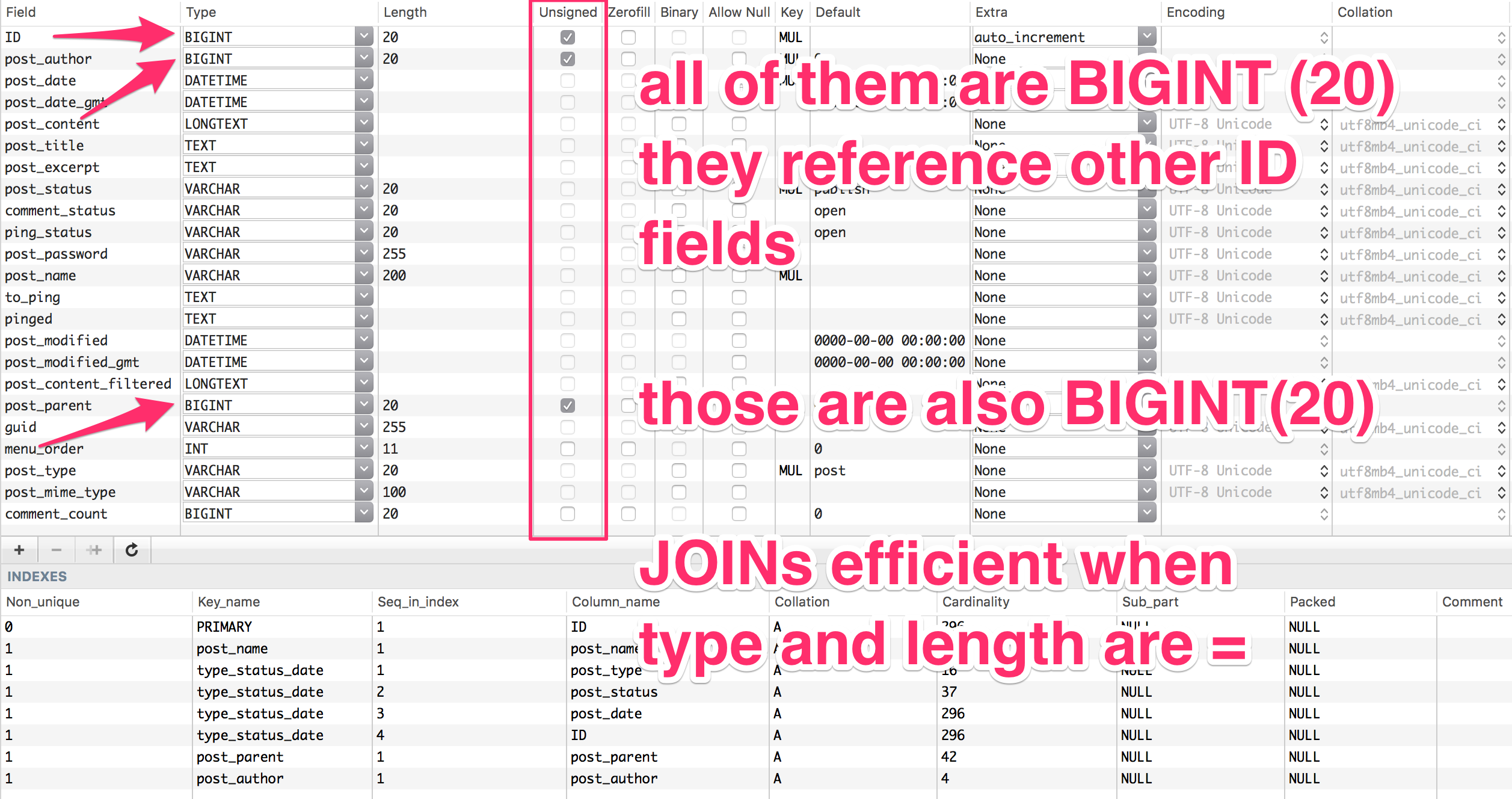

posts table structure in sequel pro, BIGINT 20 unsigned fields highlighted

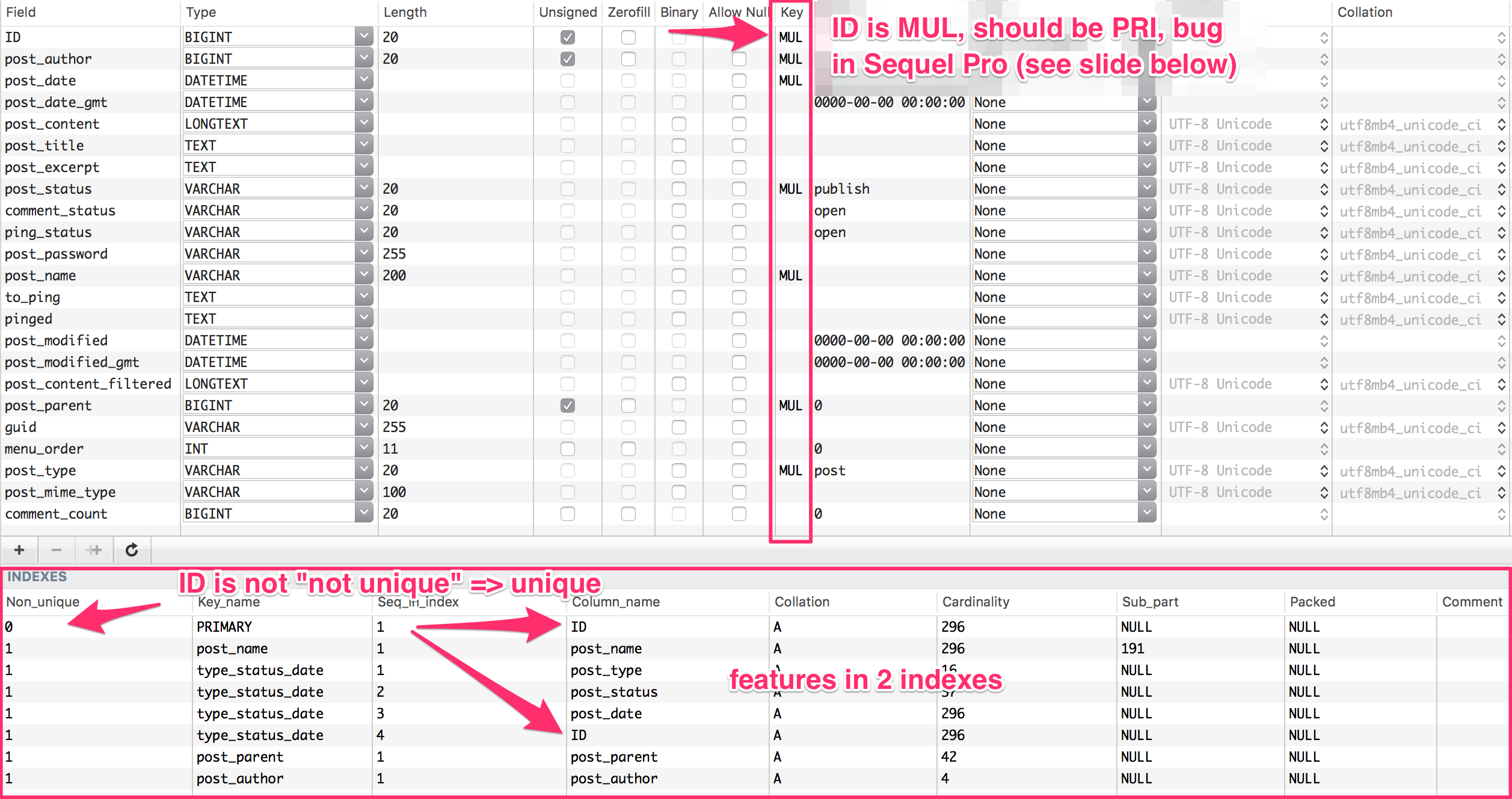

posts table structure in sequel pro, unique key field highlighted

							MariaDB [dev.dev]> show columns from wp_posts;
							+-----------------------+---------------------+------+-----+---------------------+----------------+
							| Field                 | Type                | Null | Key | Default             | Extra          |
							+-----------------------+---------------------+------+-----+---------------------+----------------+
							| ID                    | bigint(20) unsigned | NO   | PRI | NULL                | auto_increment |
							| post_author           | bigint(20) unsigned | NO   | MUL | 0                   |                |
							| post_date             | datetime            | NO   |     | 0000-00-00 00:00:00 |                |
							| post_date_gmt         | datetime            | NO   |     | 0000-00-00 00:00:00 |                |
							| post_content          | longtext            | NO   |     | NULL                |                |
							| post_title            | text                | NO   |     | NULL                |                |
							| post_excerpt          | text                | NO   |     | NULL                |                |
							| post_status           | varchar(20)         | NO   |     | publish             |                |
							| comment_status        | varchar(20)         | NO   |     | open                |                |
							| ping_status           | varchar(20)         | NO   |     | open                |                |
							| post_password         | varchar(255)        | NO   |     |                     |                |
							| post_name             | varchar(200)        | NO   | MUL |                     |                |
							| to_ping               | text                | NO   |     | NULL                |                |
							| pinged                | text                | NO   |     | NULL                |                |
							| post_modified         | datetime            | NO   |     | 0000-00-00 00:00:00 |                |
							| post_modified_gmt     | datetime            | NO   |     | 0000-00-00 00:00:00 |                |
							| post_content_filtered | longtext            | NO   |     | NULL                |                |
							| post_parent           | bigint(20) unsigned | NO   | MUL | 0                   |                |
							| guid                  | varchar(255)        | NO   |     |                     |                |
							| menu_order            | int(11)             | NO   |     | 0                   |                |
							| post_type             | varchar(20)         | NO   | MUL | post                |                |
							| post_mime_type        | varchar(100)        | NO   |     |                     |                |
							| comment_count         | bigint(20)          | NO   |     | 0                   |                |
							+-----------------------+---------------------+------+-----+---------------------+----------------+
							23 rows in set (0.00 sec)

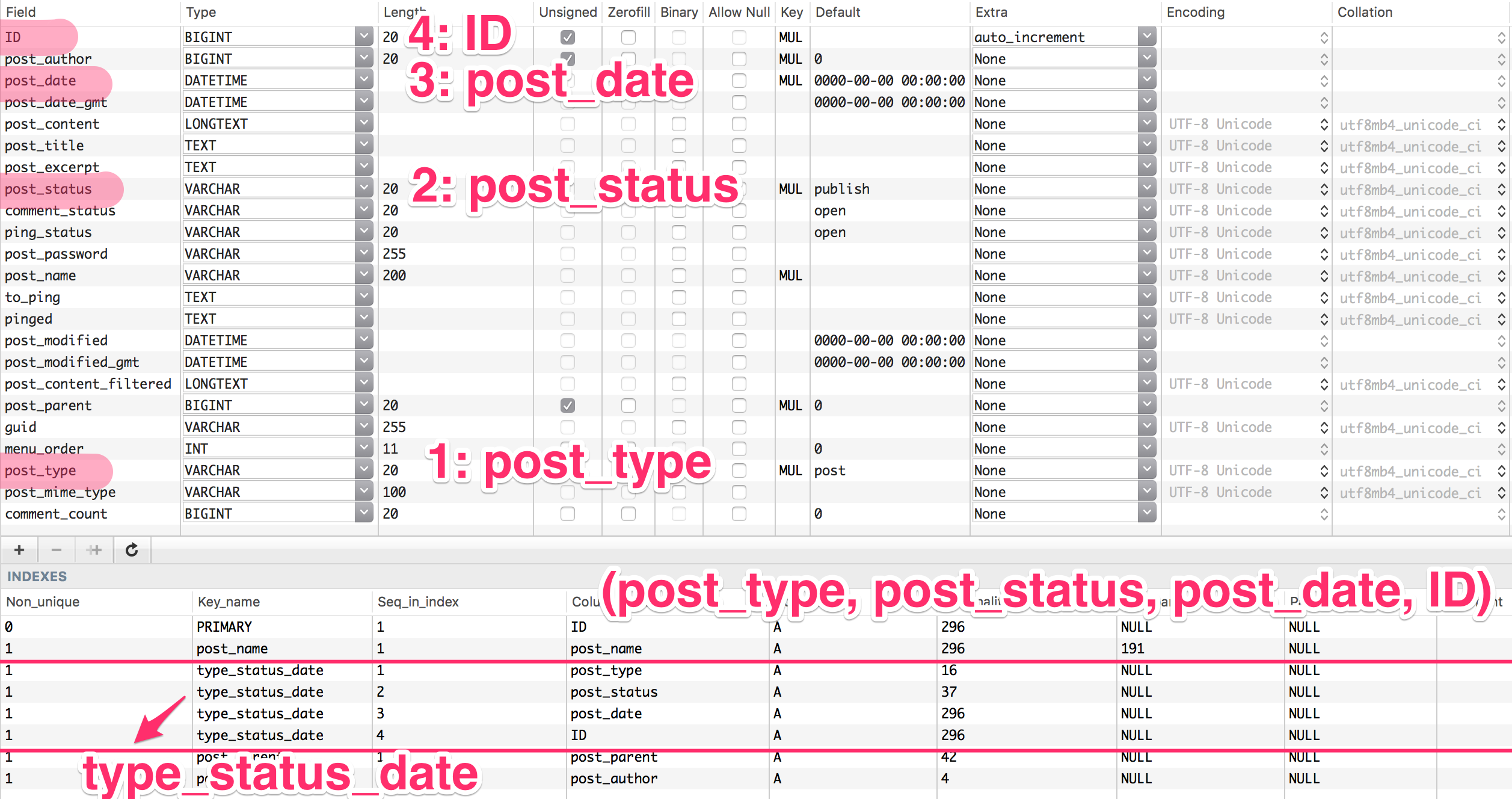

posts table structure, compound key highlighted with ordering. It's post type, post status, post date, and ID in this order

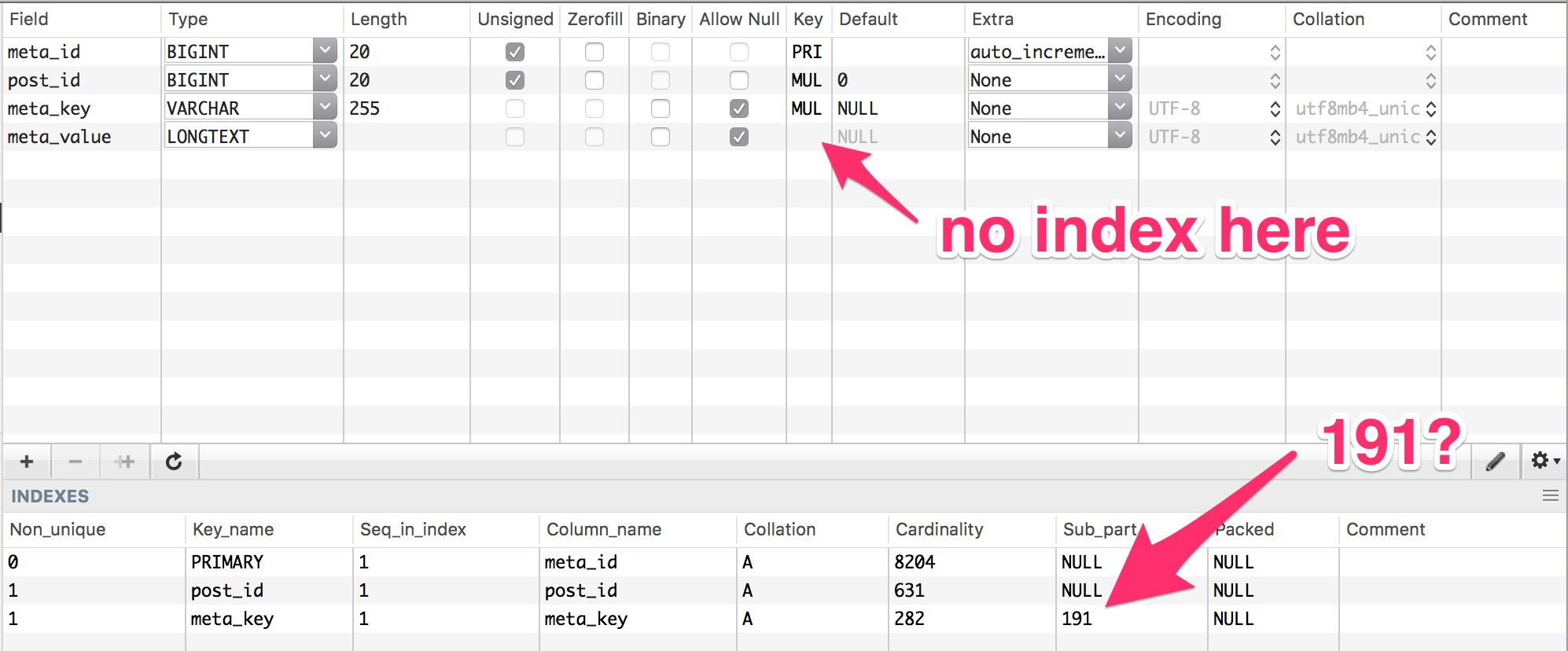

postmeta table structure

191? - Limit is 767 bytes. utf8mb4 charset => 767 / 4 = 191.75 => 191. Only 191 characters fit into the key prefix.

EXPLAIN SELECT

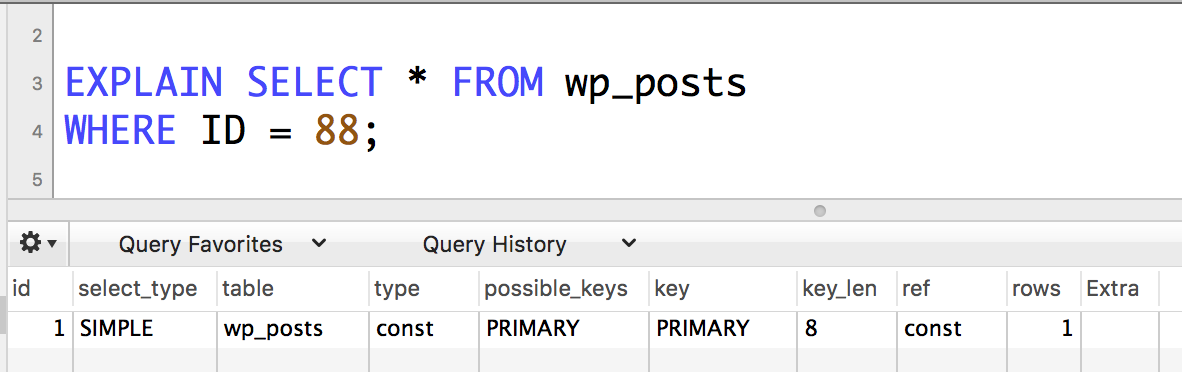

explain query that uses primary key showing mysql using primary key

(post_type, post_status, post_date, ID)

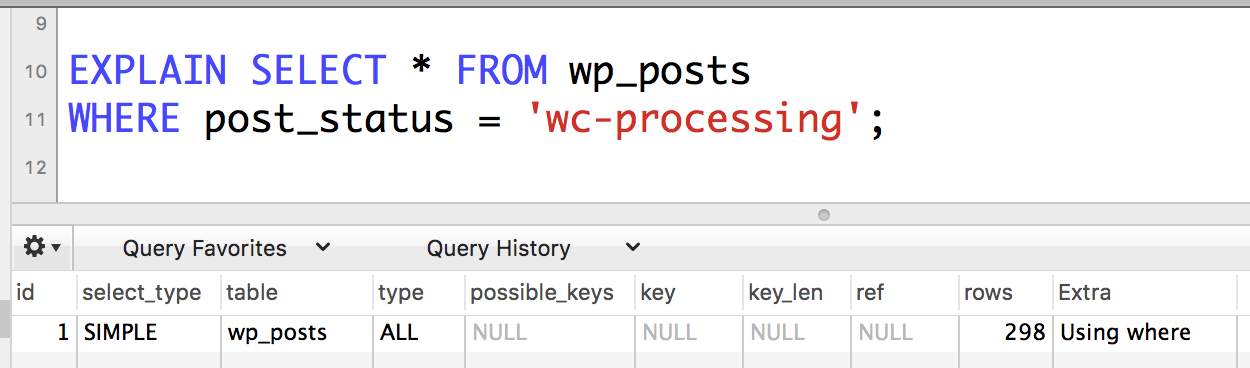

explain query using post status in where clause which is the second part of the compound query. Shows that no indexes are used

(post_type, post_status, post_date, ID)

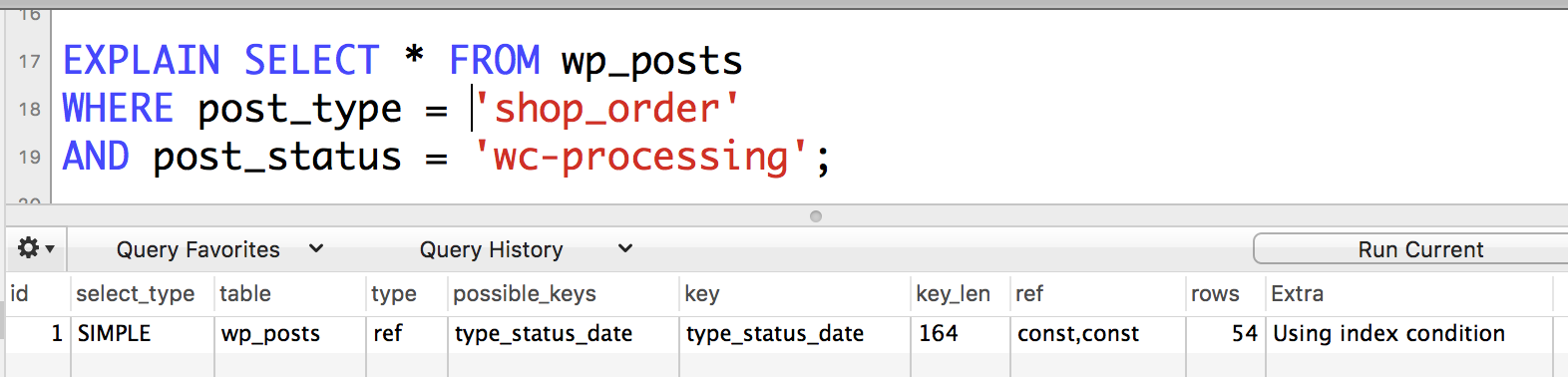

explain query using post type and post status in where clause. Shows compound index being used because these two are the leftmost prefix of the compound index

(post_type, post_status, post_date, ID)

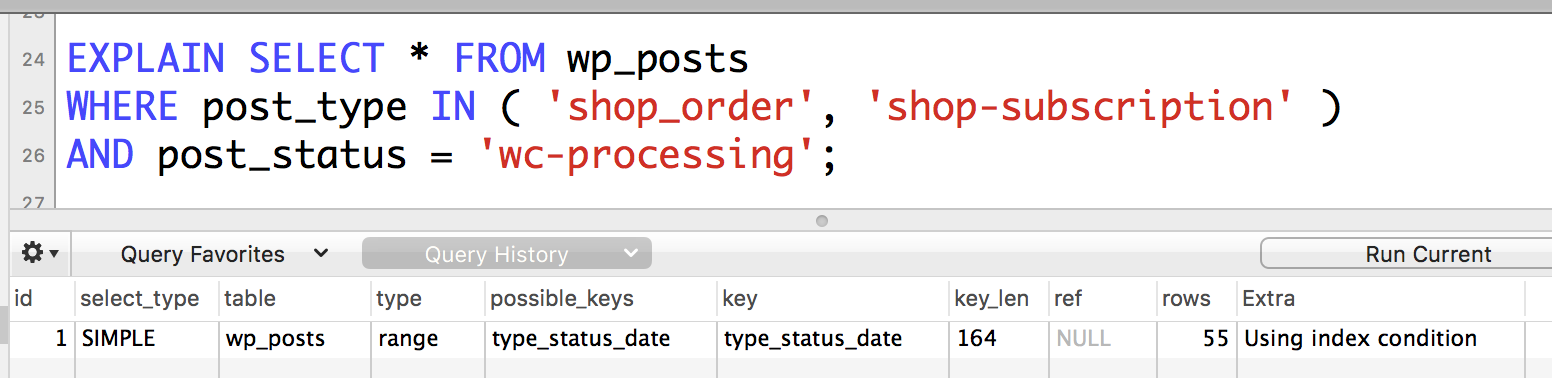

explain query using post types and post status in where clause. Shows compound index being used because these two are the leftmost prefix of the compound index even when post type can be a number of different declared values

(post_type, post_status, post_date, ID)

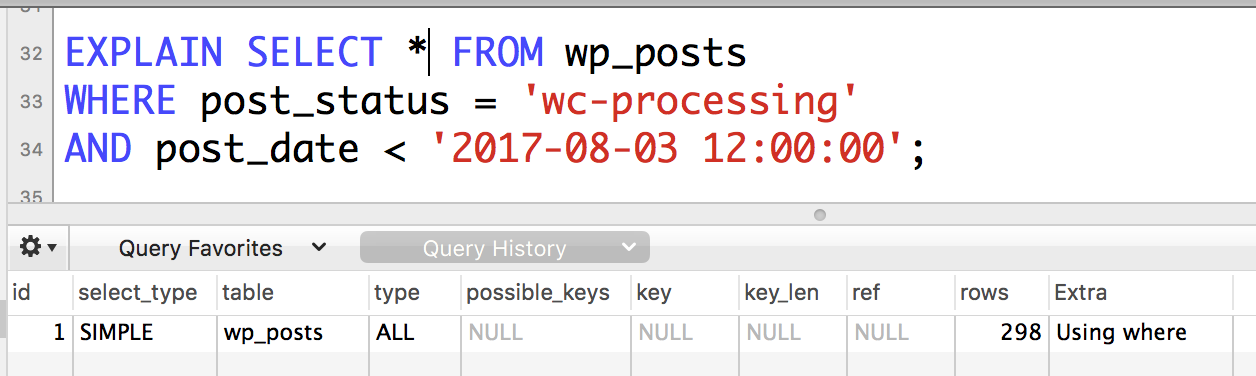

explain query using post status and post date. Shows not using index because it's parts 2 and 3

(post_type, post_status, post_date, ID)

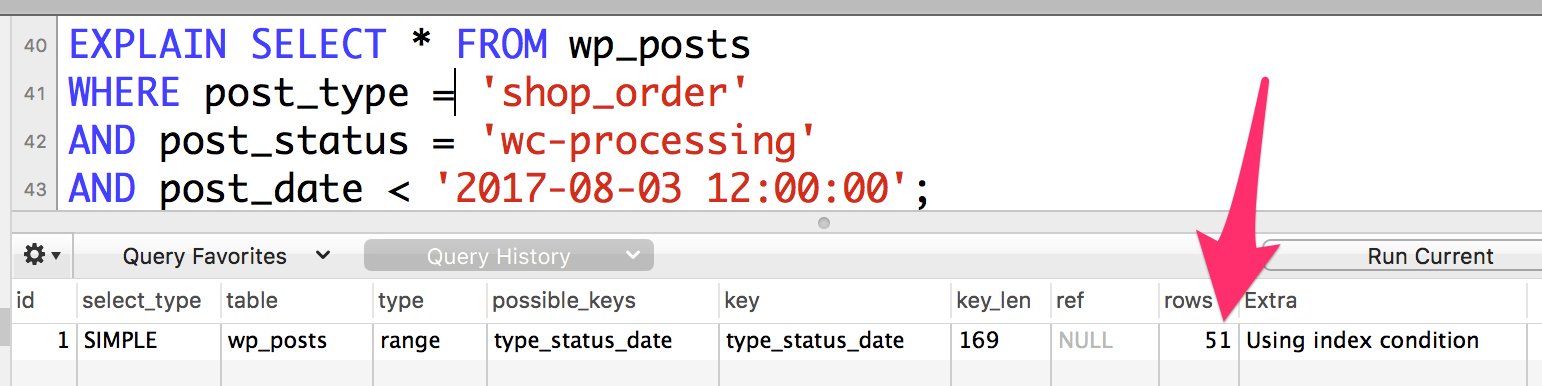

explain query using the first three parts of the compound index in the where clause. Shows it's using the compound index.

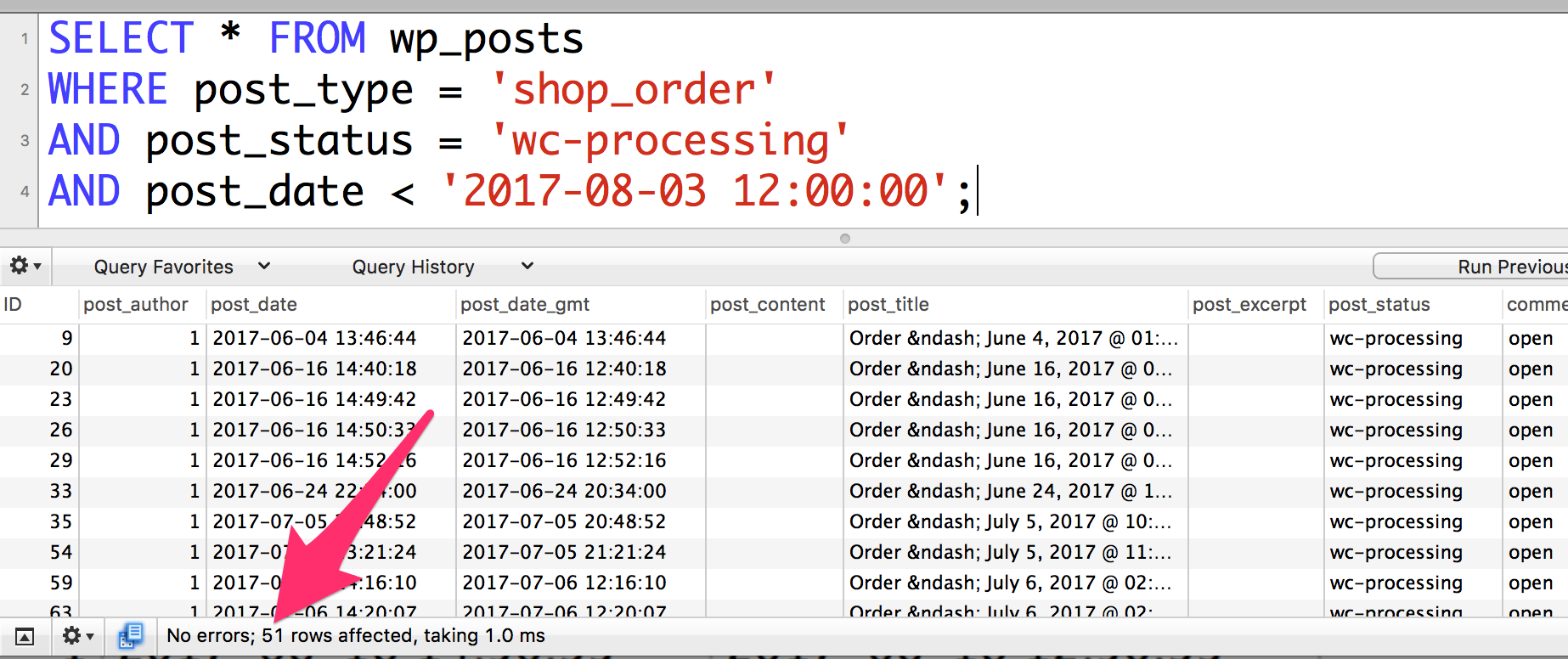

same query as the explain in the slide above with the first three parts in where clause. Shows that there are 51 returned rows.

(post_type, post_status, post_date, ID)

ID (PRIMARY)

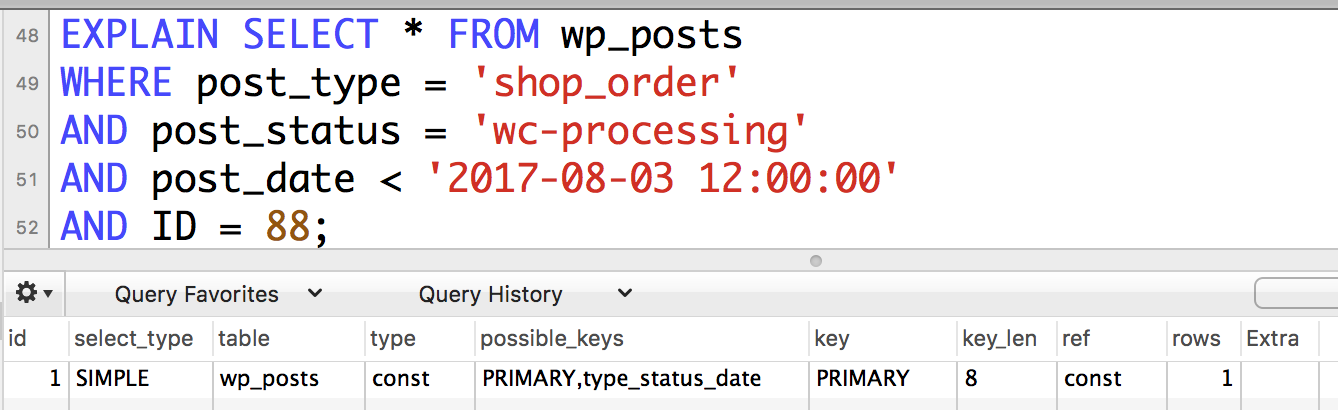

explain query using all parts of the compound index, including the ID. Since the ID is also a primary index, this shows that the query is using the primary index. Because it's an equivalence, there's only 1 row returned.

(post_type, post_status, post_date, ID)

ID (PRIMARY)

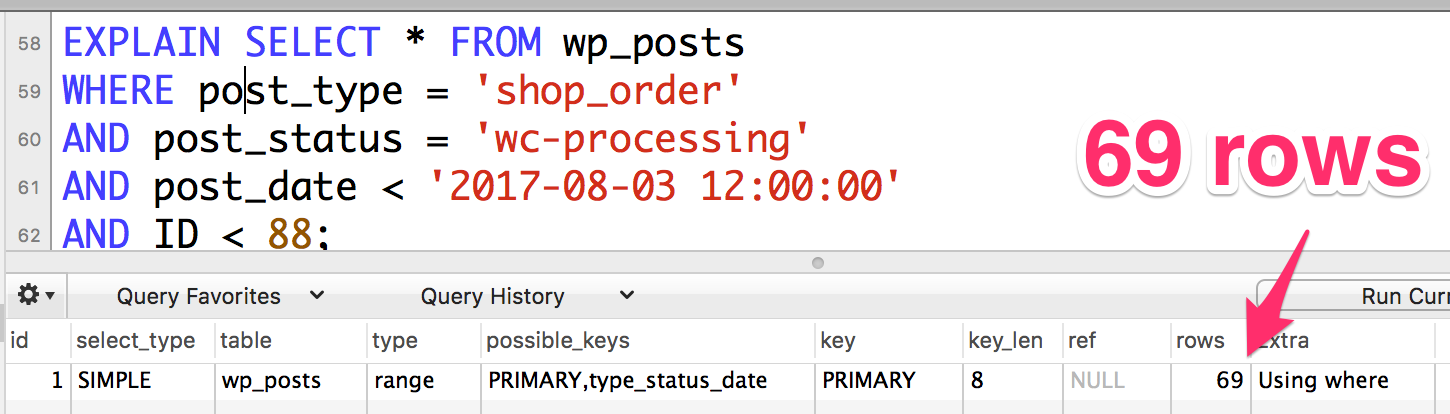

explain query using all parts of the compound query with the ID being a range comparison (less than). Because ID is also a primary key, it shows that the primary key is used for the query, and will return 69 results.

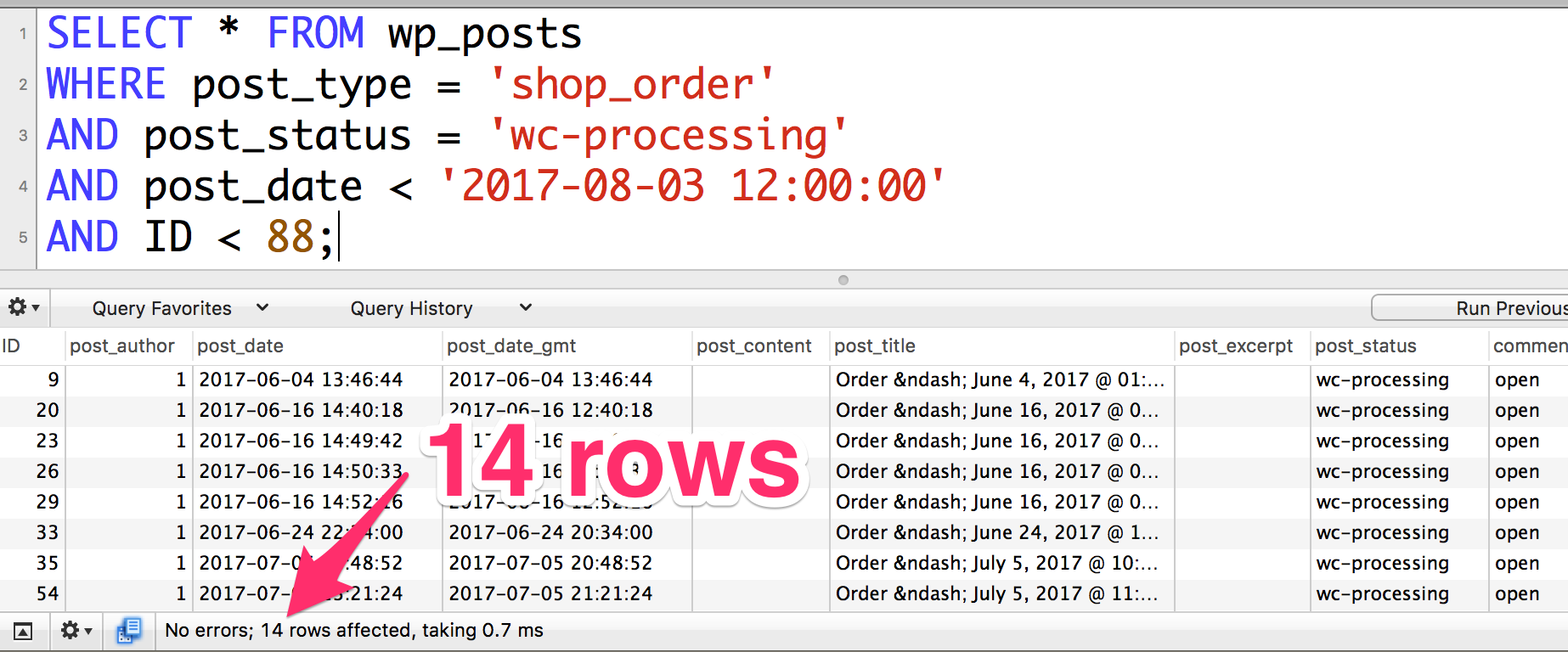

query run using all 4 parts of the compound query, including ID being a range comparison. Here there are only 14 rows, even though the explain said there are 69

Using WP_Query

By the way the previous is why WP Query forces you to declare a post_type, otherwise defaults to post.


						// in class-wp-query.php line 2281 in version 4.8.1
						// method get_posts()
						} else {
							$where .= " AND {$wpdb->posts}.post_type = 'post'";
							$post_type_object = get_post_type_object ( 'post' );
						}


If there was no post_type declaration, lots of queries would skip using the index.

ORDER BY

Think carefully what to use for order by. The full list is on MySQL docs on ORDER BY optimization.

  • The larger the data to order, the slower it'll be.
  • Indexes can be used to order by if "if the ORDER BY does not match the index exactly, as long as all unused portions of the index and all extra ORDER BY columns are constants in the WHERE clause."

MySQL doc / ORDER BY optimization

These will use index:


						-- same compound key, consecutive, no WHERE clause
						SELECT * FROM t1
						  ORDER BY key_part1, key_part2;

						-- key_part1 in WHERE with constant (not column), key_part2 in order by
						SELECT * FROM t1
						  WHERE key_part1 = constant
						  ORDER BY key_part2;

						-- key_part1 is compared to constant, same key used in order by
						SELECT * FROM t1
						  WHERE key_part1 > constant
						  ORDER BY key_part1 ASC;

						-- key parts compared to constants, order by uses same key part
						SELECT * FROM t1
						  WHERE key_part1 = constant1 AND key_part2 > constant2
						  ORDER BY key_part2;


MySQL doc / ORDER BY optimization

These will not use index though:


						-- Query uses two different indexes
						SELECT * FROM t1 ORDER BY key1, key2;

						-- non-consecutive compound index parts in order by
						SELECT * FROM t1 WHERE key2=constant ORDER BY key_part1, key_part3;

						-- mixes ASC and DESC
						SELECT * FROM t1 ORDER BY key_part1 DESC, key_part2 ASC;

						-- key in WHERE and key in ORDER BY are different
						SELECT * FROM t1 WHERE key2=constant ORDER BY key1;

						-- order by is an expression other than the index (needs calculation)
						SELECT * FROM t1 ORDER BY ABS(key);
						SELECT * FROM t1 ORDER BY -key;


MySQL doc / ORDER BY optimization

GROUP BY

Temporary table / uses indexes in VERY SPECIFIC cases. Douglas Adam's words apply to Group By too:

The Encyclopedia Galactica, in its chapter on Love states that it is far too complicated to define. The Hitchhiker's Guide to the Galaxy has this to say on the subject of love: Avoid, if at all possible. Unfortunately, Arthur Dent has never read the Hitchhiker's Guide to the Galaxy.

MySQL doc / GROUP BY optimization

JOINS

Data that requires multiple tables to fetch. Eg:

  • All posts that belong to the category "blog"
  • Orders where the billing country is the US
  • Posts where admin is the user

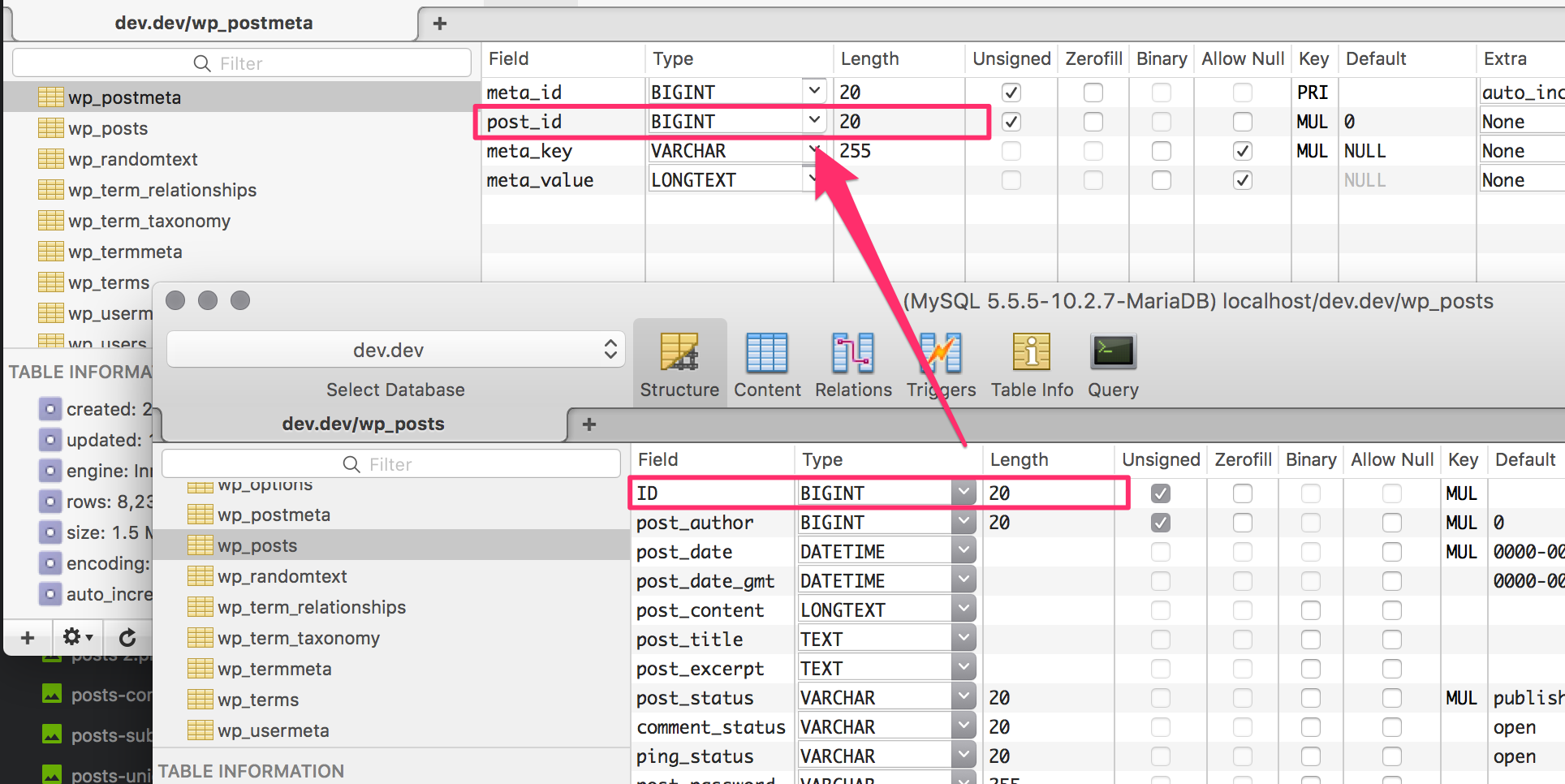

postmeta and posts table structure screencap with post_id in postmeta and ID in posts table highlighted to show they're of same type and length

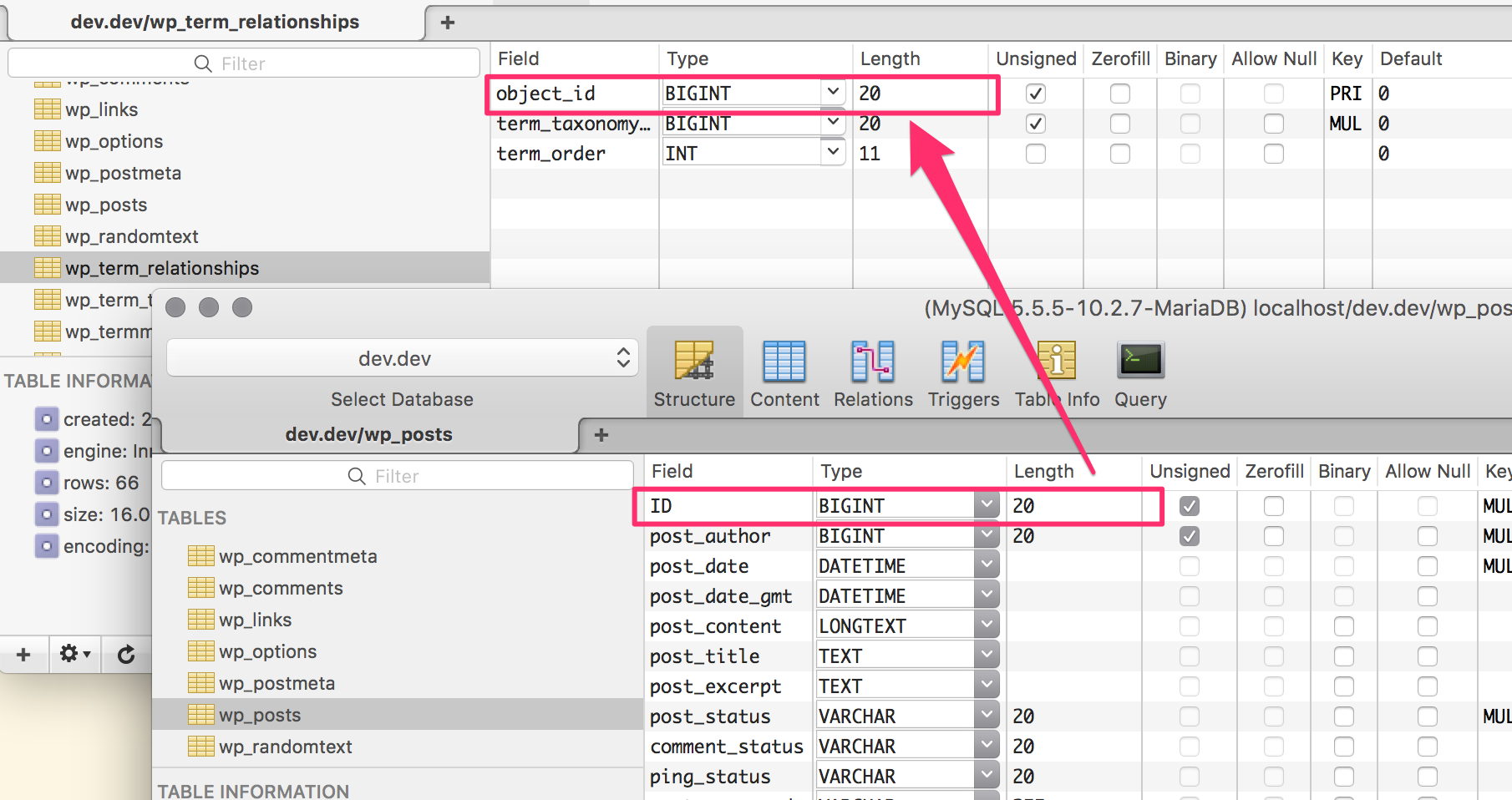

term_relationships and posts table structure screencap with object_id in term_relationships and ID in posts table highlighted to show they're of same type and length

Part II: new table / same table and foreign keys

same table / new rel table?

Hypothetical WooCommerce Orders new table structure

  • required, only one per order? => Same table, new column! eg order total
  • optional, only one per order? => Same table, allow NULL
  • required, multiple per order? => new rigid table, eg list of coupons, list of line items
  • optional, arbitrary? => general table, key-value pair, like postmeta

deleting records

delete things from wp_posts

then need to clean up in wp_postmeta

... and terms

... and comments

... and taxonomy relationships...

The solution is (would be)

Foreign keys!!

Foreign Keys

constraints on the database to keep data consistent


						CREATE TABLE parent (
						    id INT NOT NULL,
						    PRIMARY KEY (id)
						) ENGINE=INNODB;

						CREATE TABLE child (
						    id INT,
						    parent_id INT,
						    INDEX par_ind (parent_id),
						    FOREIGN KEY (parent_id)
						        REFERENCES parent(id)
						        ON DELETE CASCADE
						) ENGINE=INNODB;


Foreign Keys

You can't insert data that doesn't belong to something that already exists in the main table.

Can't drop table that has other tables depending on it.

Foreign Keys

ON DELETE CASCADE

if I delete the main record in parent, everything else that had its foreign key constrained to THAT id will automatically be deleted with it. Automatic cleanup! No more hunting for orphan data!

Of course it's not implemented in WordPress, mostly due to backwards compat reasons. (Trac 19207)

Part III: tools

  • NewRelic APM configured to give you slow queries
  • MySQL Workbench / Sequel Pro / mysql cli for the EXPLAIN queries. Please don't use phpmyadmin for this even though it COULD.
  • Blackfire.io

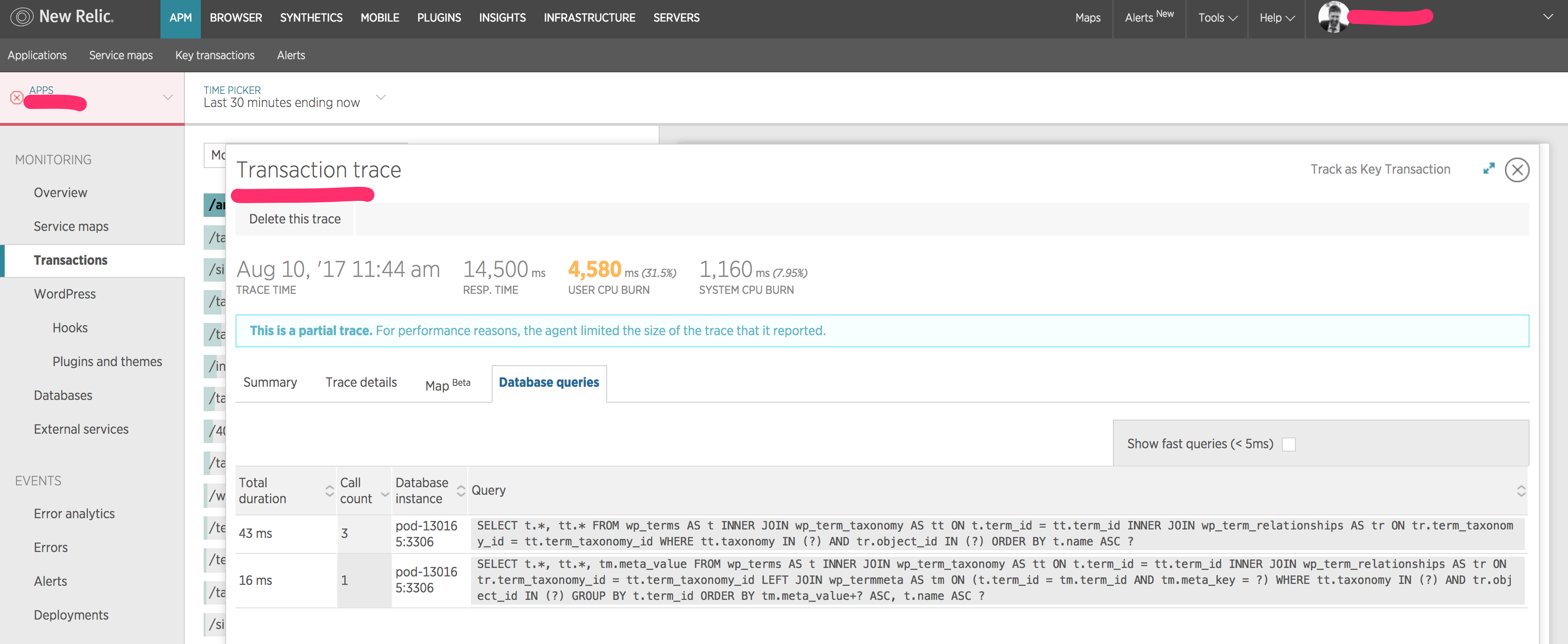

sql trace in new relic

New Relic

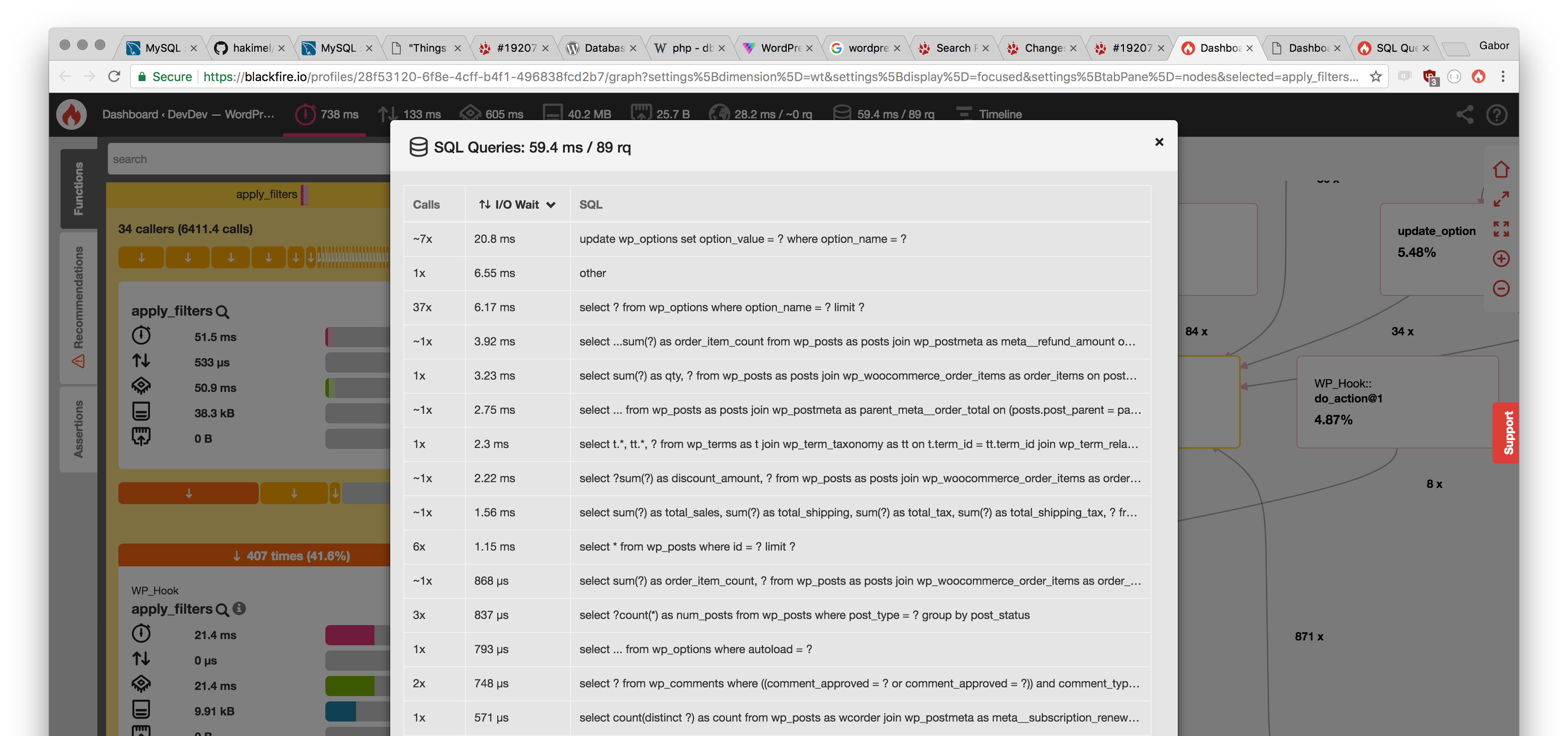

sql trace in blackfire

Blackfire

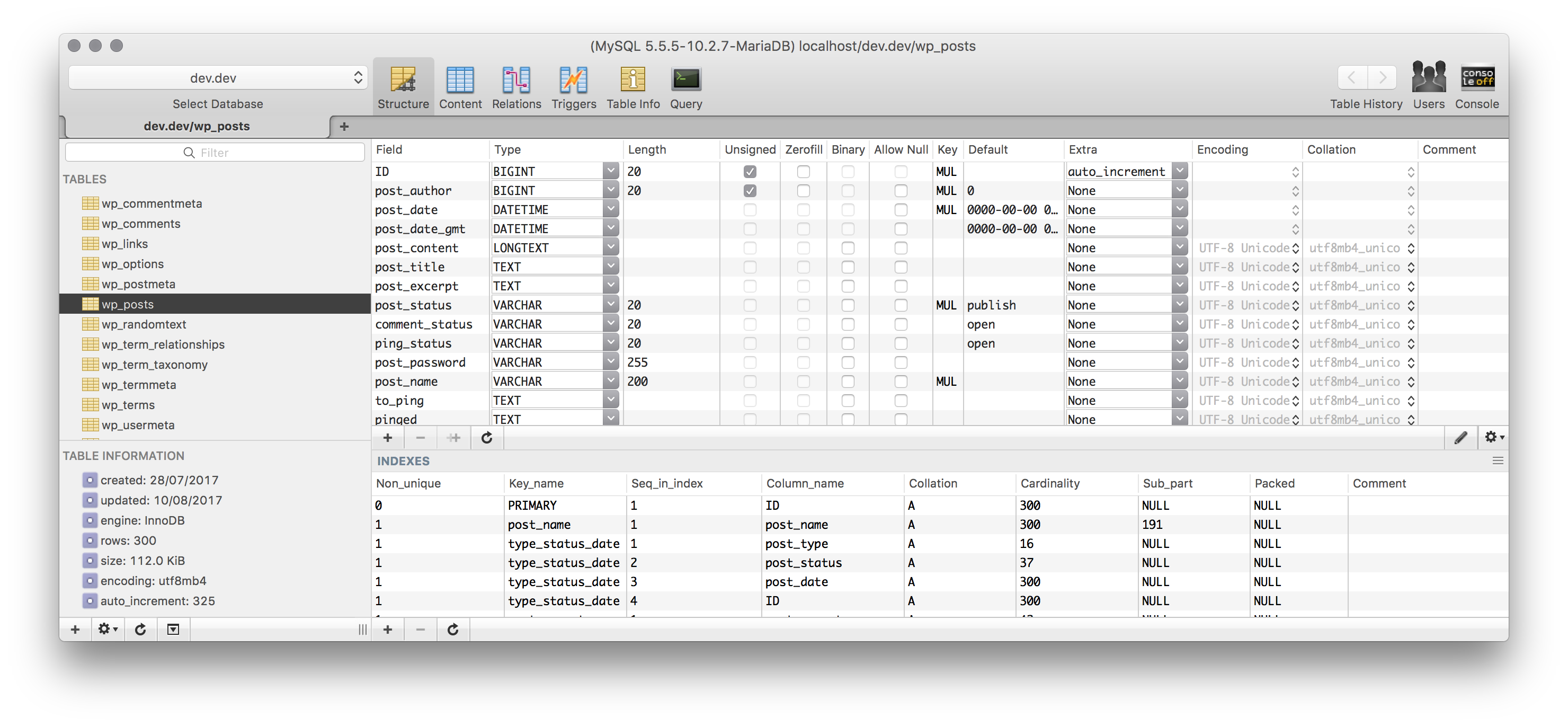

sequel pro window

Sequel Pro

Tips

  • Don't change WP schema
  • rethink code so it uses indexes
  • rethink your own schemas to not waste resources
  • learn more about MySQL. Their documentation is A++ 5/7 would recommend
  • use profiling tools to find where the bottlenecks are
  • you can always hire someone who knows how to database

Super Advanced Tip

  • If the query is REALLY gnarly, create a table / temporary table, from a bunch of data from a LOT of tables without caring about order by or group by. There you can have it indexed too. And THEN you can do your data filtering on that table.
  • Two fast queries are better than one reeaaaalllyyy slow.
  • Example in an article I wrote: How I improved a query for our plugin by several orders of magnitude

終わり

(owari – the end)

Questions?

@javorszky

btw slides on wcbtn.j7y.co
